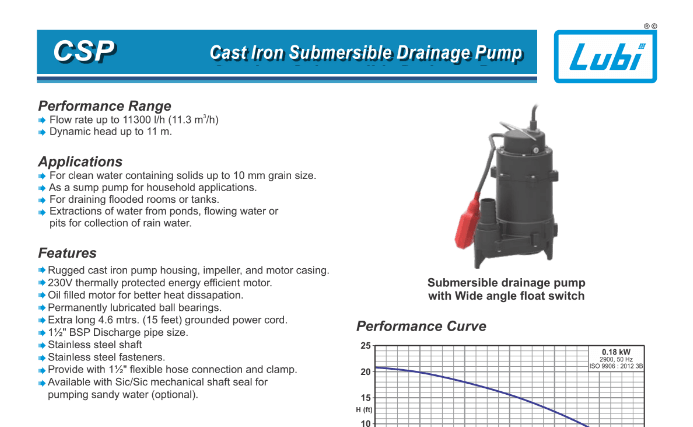

CSP551T csp series cast iron submersible drainage pumps

Lubi (CSP551T) 0.5 HP CSP Series Cast Iron Submersible Drainage Pumps With 1 Year Warranty

📝 Short DescriptionThe Lubi CSP551T is a robust 0.5 HP cast iron submersible drainage pump from the CSP Series, designed for reliable dewatering operations. With its heavy-duty build and efficient motor, it is ideal for both residential and commercial drainage tasks.

This layout includes all major sections:
✅ Point Are Point Summary
• Brand: Lubi Pump
• Model:CSP551T
• Type: cast iron submersible drainage pump
• Power: 0.50 HP (0.37 KW)
• Phase: Single Phase
• Application: Industrial, Commercial, and Construction Dewatering
• Size: 50 mm X 50 mm
• Voltage: 230 V
• Max Solid Handling: 10 mm
• Flow: 2.78 – 0.28 LPS
• Head: 6-10 M
• Motor Class: IE2 / IE4 / IE5 available

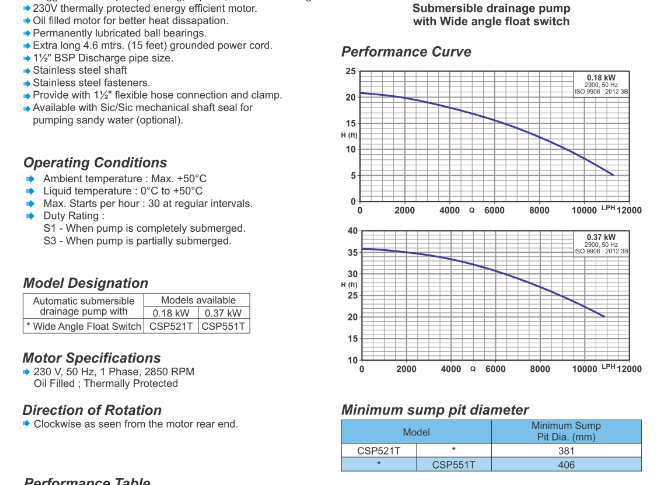

Technical Specifications
• Model No. : CSP551T
• Product Type: cast iron submersible drainage pump
• Brand: Lubi
• Motor Power: 0.50 HP (0.37 KW)
• Speed: 1450 RPM
• Electricity Connection: Single Phase
• Max Head Range: 19-32 Feet (6-10 Meters)
• Discharge Rate: 166-840 LPM
• Discharge Rate: 10000 –16 LPH
• Pipe Size (Outlet): 50 X 50 mm
• Impeller: Cast Iron / Stainless Steel / Bronze
• Delivery Casting: Cast Iron
• Motor Body: Cast Iron
• Pump Shaft: Carbon Steel / Stainless Steel
• Sealing: Mechanical Seal / Gland Packed
• Solid Handling Capacity: 10 mm
• Product Dimensions: L 450 X W 254 X H 254 MM
• Weight (Approx) : 19 Kg
• Liquid: Dewatering Water
• Warranty: 1 Year warranty on manufacturing defects only

📌 Note
• Do not operate the pump in dry conditions.
• Ensure proper earthing before starting the pump.
• For outdoor use, protect the motor from rainwater.
• Use recommended pipe size to achieve optimal flow

▶️ How to Operate
1. Installation: Submerge the pump fully in the fluid to be drained. Place it on a stable, level surface.
2. Connection: Connect to an appropriate power source as per voltage rating (usually 1Ø / 230V).
3. Start-Up: Switch on the power; the pump will start operating immediately.
4. Monitoring: Ensure that the pump remains submerged during operation. Avoid running dry.
5. Maintenance: Clean the pump periodically to prevent clogging and maintain performance.

🌟 Key Features
• 🔩 Sturdy Construction: Cast iron body for enhanced durability and corrosion resistance
• ⚙️ High Efficiency: Energy-efficient motor with continuous duty rating
• 🌀 Vortex Impeller Design: Handles solid particles effectively
• 💧 Thermal Protection: Prevents motor overheating
• 🔌 Submersible Operation: Quiet and safe operation even when fully submerged
• 🔄 Automatic Reset Motor Protector (in select models)

🚧 Applications
This pump is suitable for a wide range of applications, such as:
• Sewage & Effluent Handling
• Construction Site Dewatering
• Ash Water and Slurry Handling
• Flood Water Management
• Basement and Parking Drainage
• Chemical and Industrial Fluid Transfer
• Ports, Marine & Cooling Water Supply
• Malls, Warehouses & Multi-storey Buildings

• Handling chemicals, effluents, sewage, ash-water
• Dewatering foundation, trenches and pits
• Flood water handling
• Pumping water from docks, ports, vessels
• Cooling water for marine engines and shovels
• Dewatering from basements, multi-storeys, shopping malls, godowns

🔍 Overview
The Lubi CSP551T is part of the CSP series of cast iron submersible drainage pumps, built to perform under challenging environments. Compact yet powerful, this pump ensures optimal performance in removing excess water from various areas, ensuring dry and safe conditions. Its compact design allows for installation in tight spaces while delivering excellent head and flow rate performance.
