SP 6L sp coupled pump set with ie 2 motor

Dewatering Pump (Self-priming), SP-4LA+ CS, 12.5 HP, Three Phase, 415 Volts, Size 100 MM X 100 MM

Here is a well-organized, professionally structured format for your Kirloskar Self-Priming Pump
(Dewatering Pump (Self-priming), SP-4L+ CS, 12.5 HP, Three Phase, 415 Volts, Size 100mm X 100mm)

This layout includes all major sections:
✅ Point Are Point Summary
• Brand: Kirloskar
• Model: SP-4L+ CS
• Type: Self-Priming Dewatering Pump
• Power: 12.5 HP / 9.3 kW
• Phase: Three Phase
• Application: Industrial, Commercial, and Construction Dewatering
• Size: 100 mm X 100 mm
• Voltage: 415 V
• Max Solid Handling: 23 mm
• Flow: 14.5 – 41 LPS
• Head: 10 – 25 M
• Motor Class: IE2 / IE4 / IE5 available

📝 Short Description
Kirloskar SP-4L+ CS is a 12.5 HP three-phase self-priming pump, designed for demanding dewatering applications. Built for high efficiency and reliability, it’s ideal for sewage, storm water, construction, and chemical transfer.

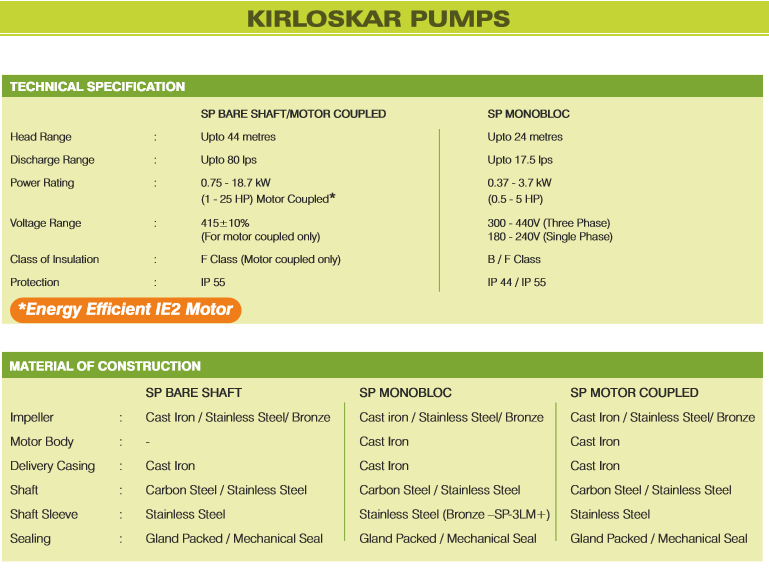

Technical Specifications
• Model No. : SP4LA+ CS
• Product Type: SP Series Self Priming Bare IE2 Motor Coupled Pump
• Brand: Kirloskar
• Motor Power: 12.5 HP (9.3 KW)
• Speed: 1450 RPM
• Electricity Connection: Three Phase
• Max Head Range: 32-82 Feet (10-25 Meters)
• Discharge Rate: 2460-840 LPM
• Discharge Rate: 147600 –50400 LPH
• Pipe Size (Outlet): 100 X 100 mm
• Impeller: Cast Iron / Stainless Steel / Bronze
• Delivery Casting: Cast Iron
• Motor Body: Cast Iron
• Pump Shaft: Carbon Steel / Stainless Steel
• Sealing: Mechanical Seal / Gland Packed
• Solid Handling Capacity: 23 mm
• Product Dimensions: L 1600 X W 904 X H 660 MM
• Weight (Approx) : 317 Kg
• Liquid: Dewatering Water
• Warranty: 1 Year warranty on manufacturing defects only

Datasheet Download

📌 Note
• The pump is self-priming, eliminating the need for foot valves or manual priming.
• Suitable for fluids with suspended soft solids.
• Easy to service even at remote locations.

▶️ How to Operate
1. Install pump on a firm base, ensure correct alignment.
2. Connect suction and delivery pipelines with appropriate gaskets and seals.
3. Ensure fluid level is adequate to avoid dry running.
4. Power on the unit using a three-phase supply (415 V).
5. Monitor discharge and pressure, adjust flow using valves as required.
6. Shut down using main power after use. Clean if necessary.

🌟 Key Features
• Self-Priming Capability – No need for external priming, ensuring quicker start up.
• Non-Clog Impeller – Handles solids up to 23 mm, perfect for sewage and slurry.
• Overload Protection – Designed to avoid motor damage at varying heads.
• Flatter Efficiency Curve – Stable efficiency across a wide range of discharge conditions.
• Replaceable Wearing Parts – Increases pump longevity and reduces downtime.
• Easy Maintenance Design – Enables service by semi-skilled operators at remote sites.

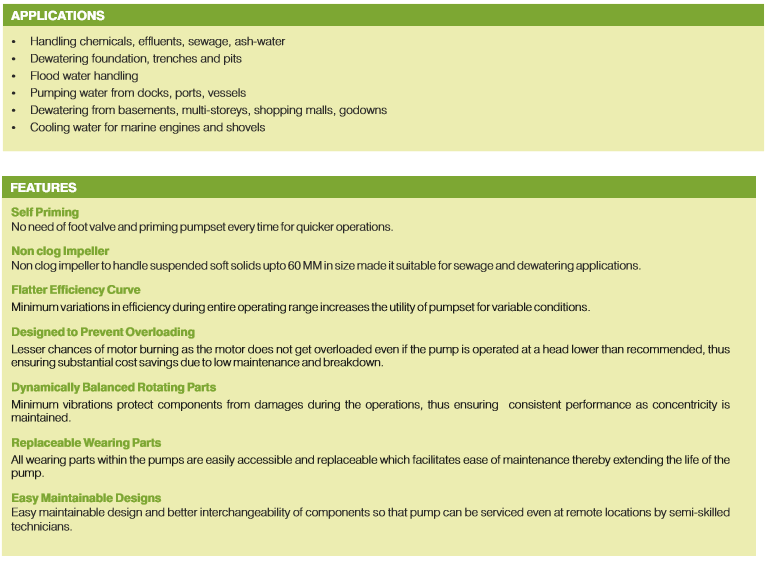

🚧 Applications
This pump is suitable for a wide range of applications, such as:
• Sewage & Effluent Handling
• Construction Site Dewatering
• Ash Water and Slurry Handling
• Flood Water Management
• Basement and Parking Drainage
• Chemical and Industrial Fluid Transfer
• Ports, Marine & Cooling Water Supply
• Malls, Warehouses & Multi-storey Buildings

• Handling chemicals, effluents, sewage, ash-water
• Dewatering foundation, trenches and pits
• Flood water handling
• Pumping water from docks, ports, vessels
• Cooling water for marine engines and shovels
• Dewatering from basements, multi-storeys, shopping malls, godowns

🔍 Overview
The SP4LA+CS from Kirloskar is a high-efficiency, self-priming dewatering pump offering reliable operation with minimal maintenance. It supports various impeller and shaft materials to suit specific applications and delivers excellent performance even in harsh industrial or commercial settings.
