V-Guard 1 Hp Single Phase Dewatering Sewage Pump With Float Switch, 9m Max. Head, 24800LPH (VSWS-F25US)- 1 Year Warranty

₹12538
(Incl. of all taxes)
₹10625+ 18% GST
MRP ₹ ~~19590~~
(36 % OFF)

Add to Cart

Buy Now

EASY RETURN & REFUND

Quality Assurance

Trusted Delivery

After Sales Assistance

Buyer Protection

Cash On Delivery

Short Description
V-Guard 1 Hp Single Dewatering Sewage Pump 9 m Max. Head, 24800 LPH Max. Discharge 20 mm Solid Handling Capacity 1 Year Warranty
Country of origin: India
Data Sheet Flow Meter

Specifications

Description

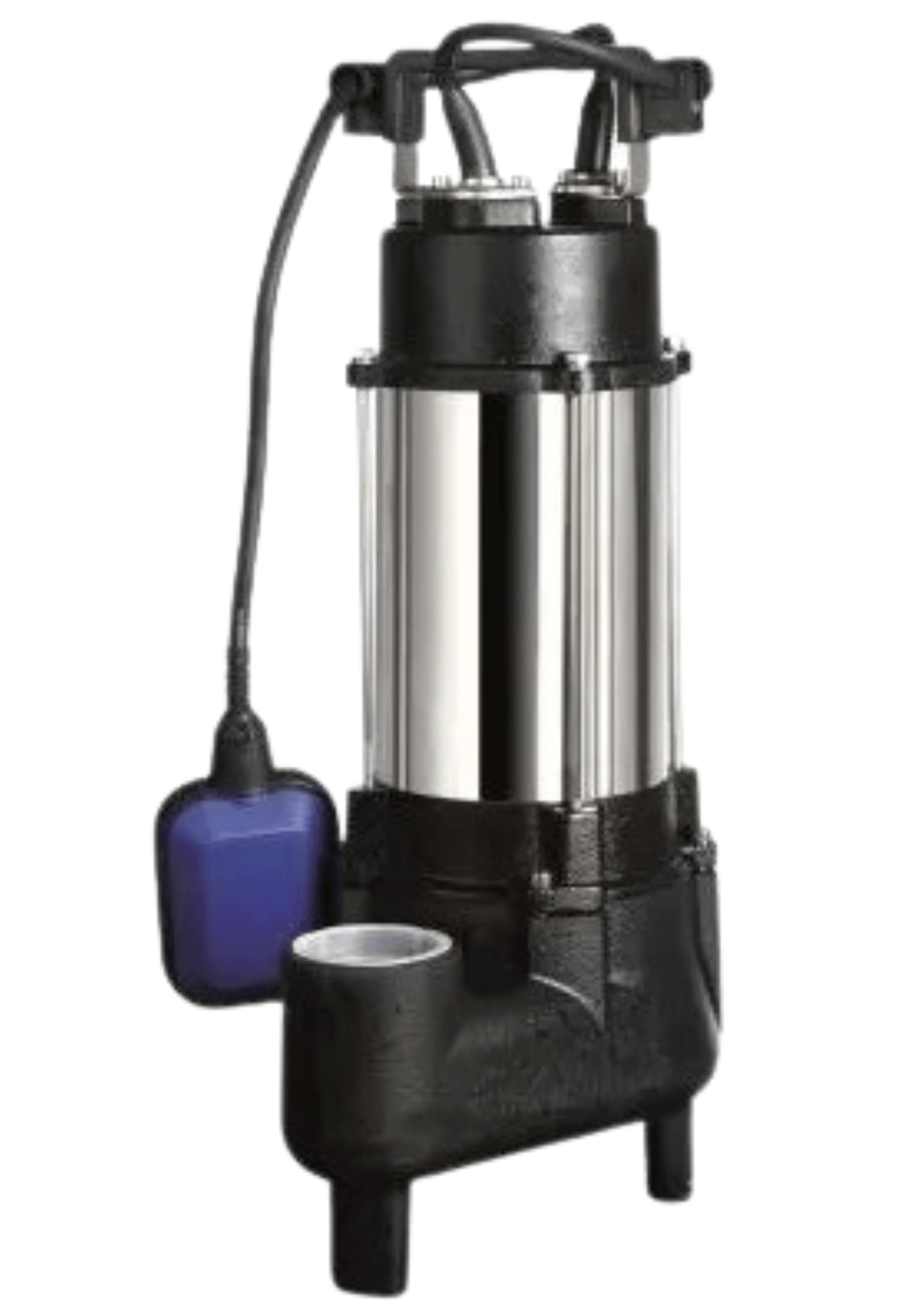

V-Guard 1 Hp Single Phase Dewatering Sewage Pump With Float Switch, 9m Max. Head, 24800 LPH (VSWS-F25US)- 1 Year Warranty

Description :
• The Sewage Submersible Pump is used for draining pits and deep roadway underpasses, as well as for dewatering basements and courtyards subject to a flooding risk or groundwater. This pump is known for its durability and high performance. The submersible pump is very compact, thus the installation process gets easy.

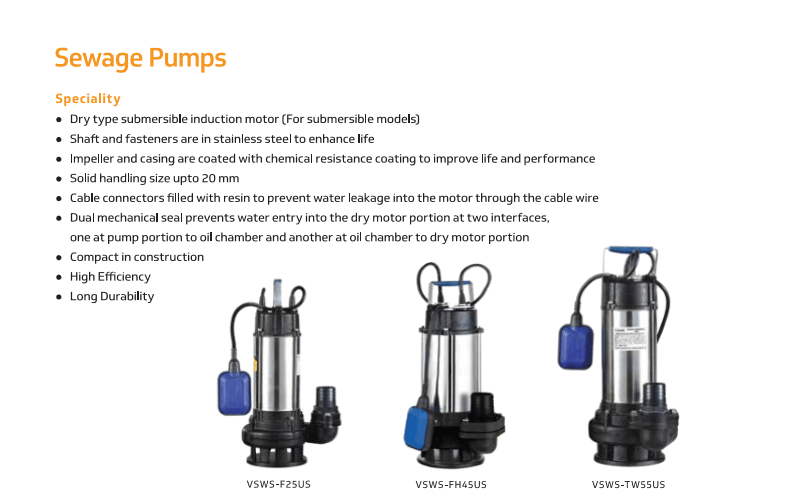

Features :
• Dry type submersible induction motor
• Shaft and fasteners are in stainless steel to enhance life
• Impeller and casing are coated with chemical resistance coating to improve life and performance
• Solid handling size upto 20 mm
• Cable connectors filled with resin to prevent water leakage into the motor through the cable wire• Dual mechanical seal prevents water entry into the dry motor portion at two interfaces, one at pump portion to oil chamber and another at oil chamber to dry motor portion
• Compact in construction• High Efficiency• Long Durability

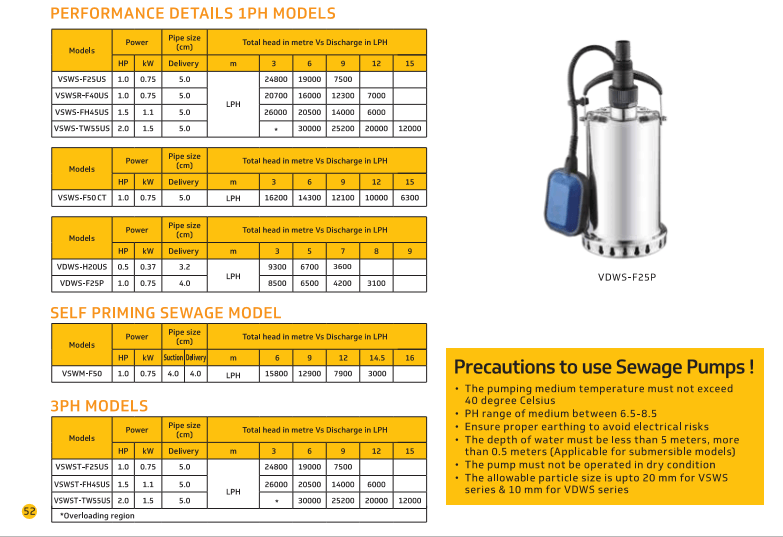

Specifications :
• Model No. : VSWS-F25US
• Product Type : Dewatering Sewage Pump
• Brand : V-Guard
• Wattage : 0.75 Kw
• Electricity Connection : Single Phase
• Body Material : SS 304
• Pipe Size : 5 Cm Delivery
• Speed : 2800 RPM
• Solid Handling Size : 20 mm
• Impeller Material : CI
• Max Head Range : 3 to 9 Meter
• Discharge Range : 24800 to 7500 LPH

Applications :
• Construction Sites.
• Swimming Pools.
• Food Processing Industries.
• Hotels and Restaurants.
• Paper Mills.
• Sewage Treatment Plants Sugar Factories
• Easy Water Treatment Plant.

Precautions to use Sewage Pump :
• The pumping medium temperature must not exceed 40 degree Celsius
• pH range of medium between 6.5-8.5
• Ensure proper earthing to avoid electrical risks
• The depth of water must be less than 5 meters, more than 0.5 meters
• The pump must not be operated in dry condition
• The allowable particle size is upto 20 mm.

Warranty :
• One Year Warranty On Manufacturing defects.

V-Guard 1 HP Single Phase Dewatering Sewage Pump With Float Switch, 9 m Max. Head, 24800 LPH (VSWS-F25US)- 1 Year Warranty

V-Guard 1 HP Single Phase Dewatering Sewage Pump With Float Switch,
9 m Max. Head, 24800 LPH
(VSWS-F25US)
- 1 Year Warranty
